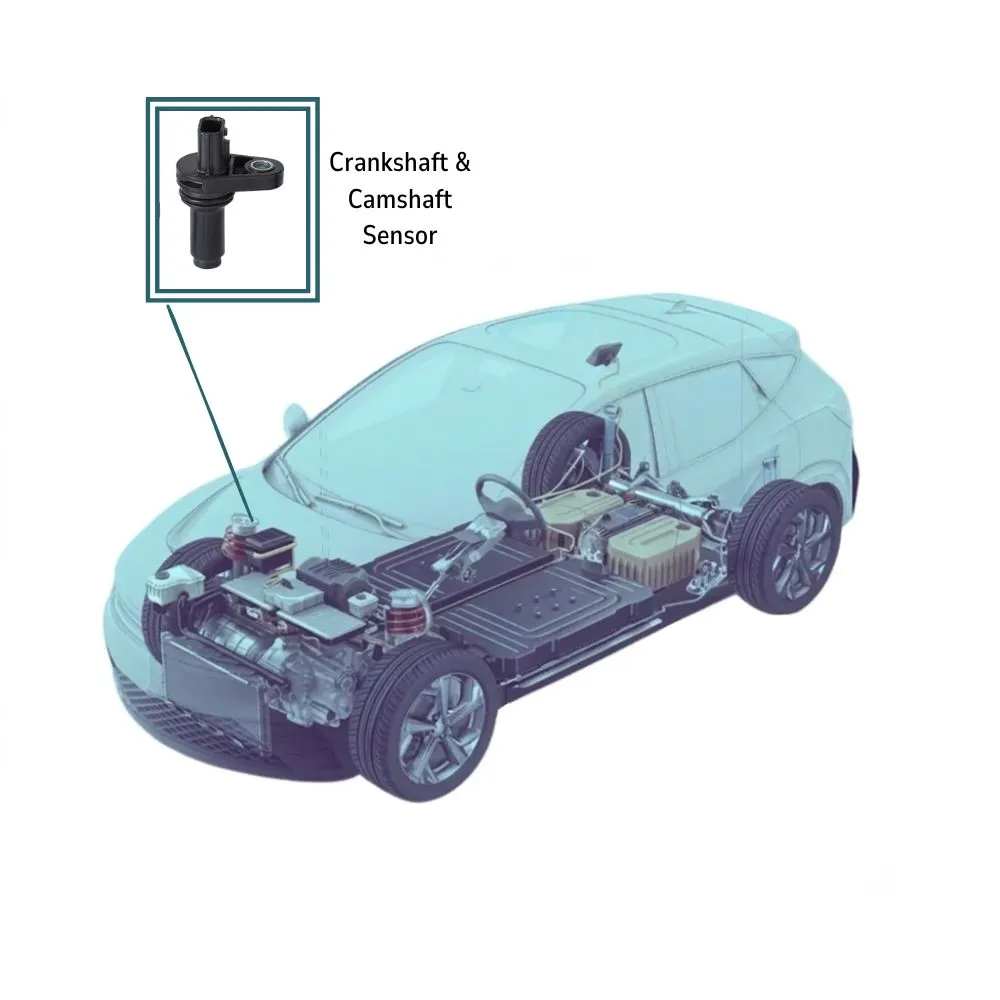

Crankshaft & Camshaft Sensor – 2 & 4 Wheelers

Detect the rotating positions of the crankshaft and camshaft

Call Us Now

These sensors accurately detect the rotating positions of the crankshaft and camshaft, ensuring precise engine timing for motorcycles and automobiles. With a non-contact design, high reliability, zero-speed detection, and sealed construction, they perform flawlessly even under high-temperature conditions.

Our Offerings

1. Crankshaft & Camshaft Sensor

Application : • To detect rotating position of Camshaft for motor cy cles & automobiles. • To detect rotating position of Crankshaft for motorcycles & automobiles.

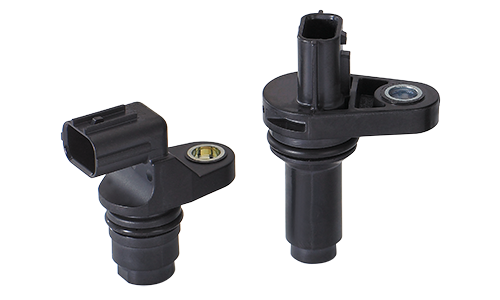

Crankshaft & Camshaft Sensor
Features
  • • Non contact type.
  • • High reliability, No moving parts
  • • Zero speed detection
  • • Sealed design
  • • Single screw mounting
  • • Suitable for High temperature.
Specification
  • Supply Voltage: 5V dc ( Differential Hall with or without direction )
  • Type : Hall / Inductive
  • Movement : Angle / linear
  • Mounting Type : single / Double point
  • Temperature : -40 ˚C to 150 ˚C
  • Air Gap : 0.2 mm to 2 mm
  • Target Wheel : Steel / Multipole teeth wheel
  • Di electric Withstand : 1500V AC, with 0.1mA
  • Insulation resistance : DC 500 V >10 MΩ+
  • Sensor Body Material : Brass
  • Connector: PBT 30 % GF
  • Mounting & End Connector Mold : Optional

These sensors accurately detect the rotating positions of the crankshaft and camshaft, ensuring precise engine timing for motorcycles and automobiles. With a non-contact design, high reliability, zero-speed detection, and sealed construction, they perform flawlessly even under high-temperature conditions.

If you need a reliable crankshaft or camshaft sensor, this one is built to provide accurate performance and precise timing data, making sure your engine’s ignition and fuel injection systems stay safe and efficient.
