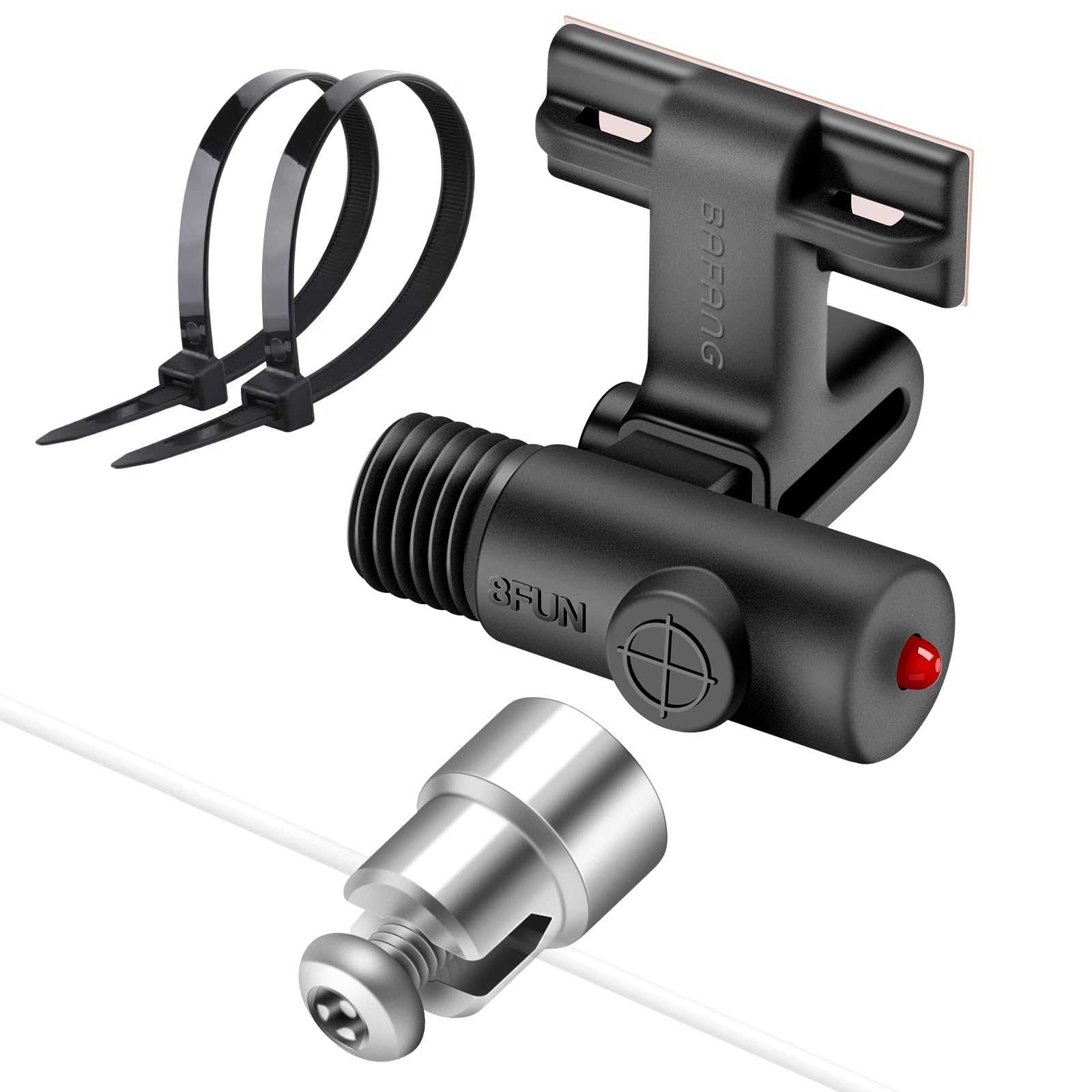

Hub Mounted Speed Sensor

Hub Mounted Speed Sensor (For 2, 3 & 4 Wheeler)

Detects vehicle speed and sends real-time data

Call Us Now

Mounted on the wheel hub, this sensor accurately detects vehicle speed and sends real-time data to the instrument cluster. With digital current sinking outputs, excellent low-speed performance, and a wide operating temperature range, it’s reliable, simple to install, and built for consistent operation.

Our Offerings

1. Hub Mounted speed sensor

Hub Mounted speed sensor
Features
  • • Digital current sinking outputs (Open collector).
  • • Excellent low speed performance.
  • • Wide range of operating temperature
  • • Simple construction easy to assemble.
Specification
  • Supply Voltage: 5V dc ( Differential Hall with or without direction
  • Type : Hall / Inductive
  • Movement : Angle / linear
  • Mounting Type : single / Double point
  • Temperature : -40 ˚C to 150 ˚C
  • Air Gap: 0.2 mm to 2 mm
  • Target Wheel : Steel / Multipole teeth wheel
  • Thermal Time constant : ≤ 6 seconds (In Air)
  • Di electric Withstand : 1500V AC, with 0.1mA
  • Insulation resistance : DC 500 V >10 MΩ+
  • Sensor Body Material : Brass
  • Connector: PBT 30 % GF
  • Connector: PBT 30 % GF
  • Thread Size: M10 x 1.5 mm
  • Hex Size : Optional
  • Hex Size : Optional

Mounted on the wheel hub, this sensor accurately detects vehicle speed and sends real-time data to the instrument cluster. With digital current sinking outputs, excellent low-speed performance, and a wide operating temperature range, it’s reliable, simple to install, and built for consistent operation.

This hub mounted speed sensor provides accurate low-speed and high-speed detection, supporting dependable vehicle speed monitoring in automotive applications.
